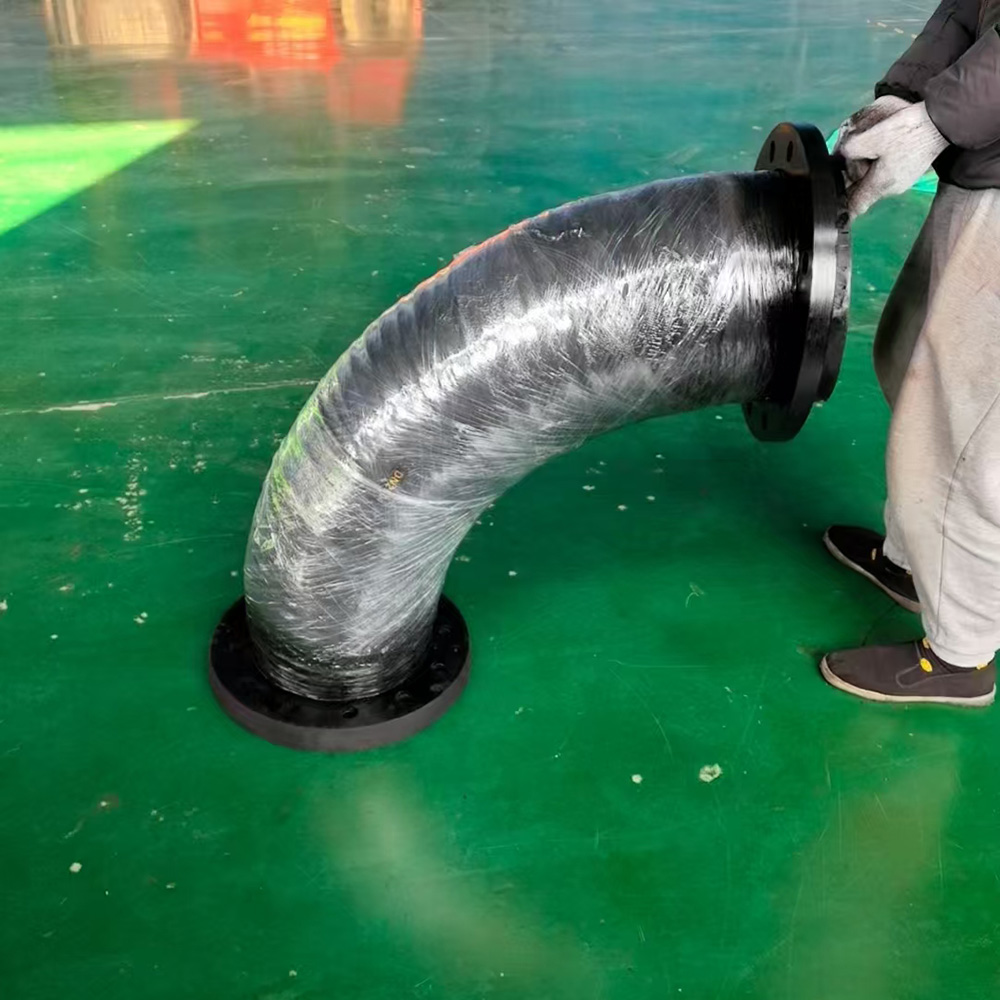

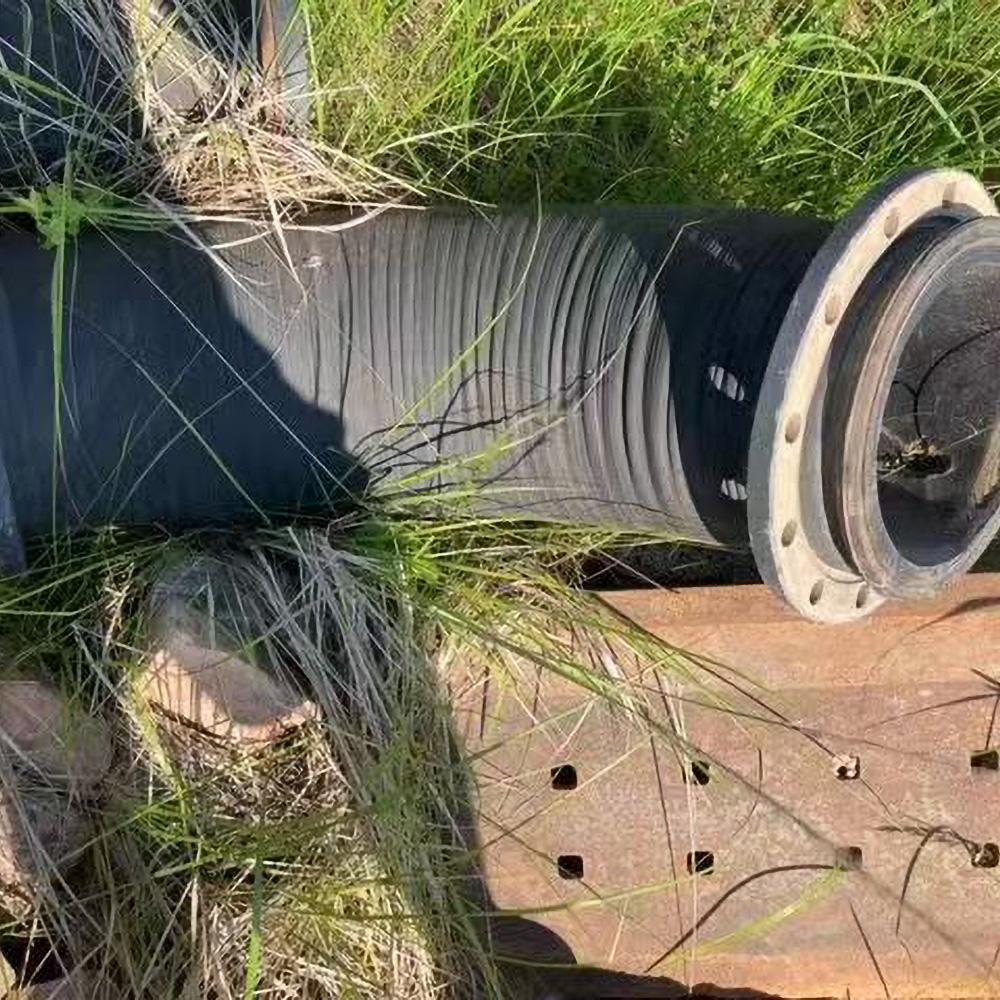

Rubber Elbow

This product is used in the pipe elbows of dredgers. Compared to standard steel pipes, it offers superior wear resistance and bending performance.

Overview

NOMINAL BORE (D)	NOMINAL BORE (D)	TYPICAL YEAR LINER THICKNESS	TYPICAL YEAR LINER THICKNESS	RADIUS (R)	RADIUS (R)	90° (A)	90° (A)	45° (A)	45° (A)
mm	in	mm	in	mm	in	mm	in	mm	in
150	6	6	1/4	457	18	607	23.9	339	13.3
200	8	10	3/8	610	24	760	29.9	403	15.9
250	10	10	3/8	762	30	912	35.9	466	18.3
300	12	12	1/2	914	36	114	43.9	579	22.8
350	14	12	1/2	1067	42	1267	49.9	642	25.3
400	16	12	1/2	1219	48	1419	55.9	705	27.8
450	18	12	1/2	1372	54	1572	61.9	768	30.2
500	20	12	1/2	1524	60	1724	67.9	831	32.7
600	24	15	5/8	1829	72	2029	79.9	958	32.7
