Floating dredging rubber hose-Dredging Hose-Sichuan Zhengshuo Machinery Equipment

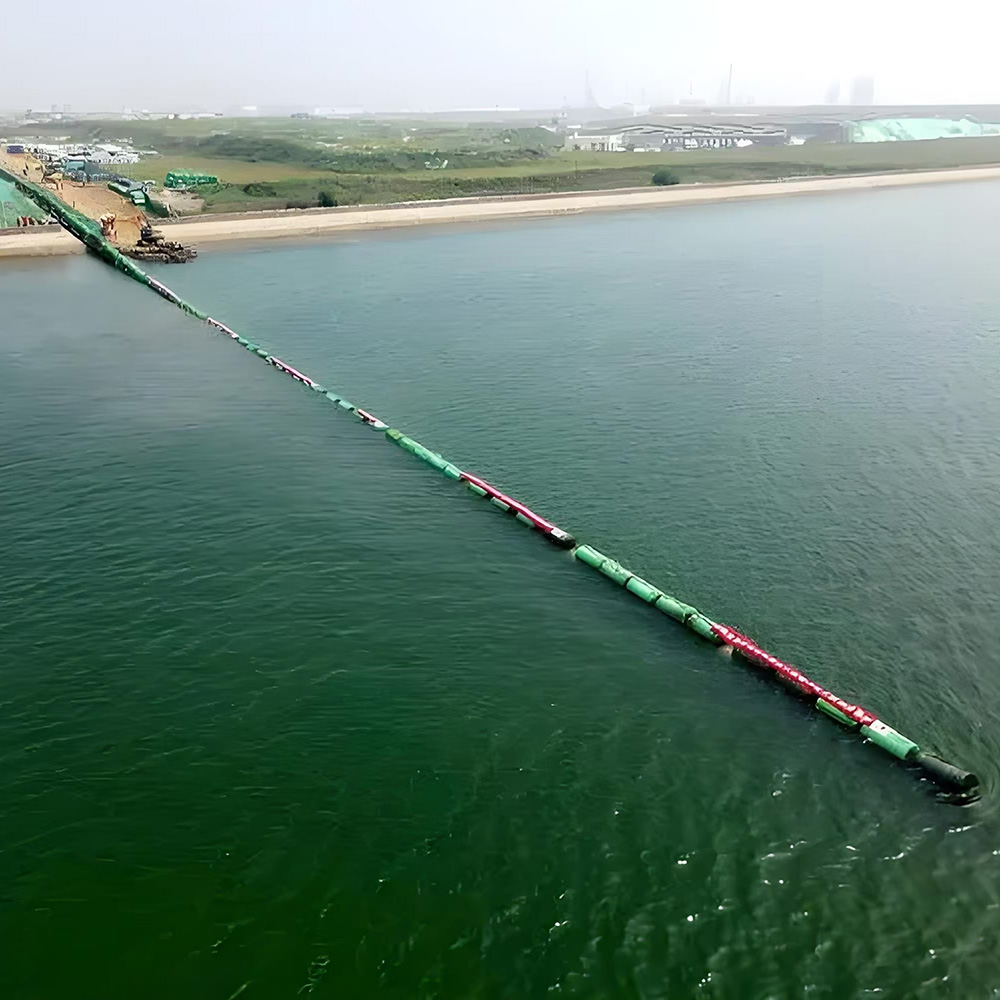

Floating dredging rubber hose

Designed for sediment dredging and sludge removal in rivers, lakes, ports, and other water bodies, this product boasts strong load-bearing capacity, corrosion resistance, anti-oxidation, long service life, and low maintenance costs.

It is an essential piece of equipment in current water conservancy projects.

Service Online：

GET QUOTE　　　>

Overview

内径 Inside diameter (mm)	工作压力 Work pressure (MPa)	爆破压力 Burst pressure (MPa)	长度 Lengths (mm)	最小弯曲半径 Min. bend radius	耐磨层厚度 Thickness of wear-resistant layer (mm)	外覆层厚度 Outer cladding thickness (mm)
150	0.5-1.0	1.5-3.0	11800	8D	10-20	8-12
200	0.5-1.0	1.5-3.0	11800	8D	10-20	8-12
250	0.5-1.0	1.5-3.0	11800	8D	10-20	8-12
300	1.0-2.0	3.0-6.0	11800	12D	12-25	10-15
350	1.0-2.0	3.0-6.0	11800	12D	12-25	10-15
400	1.0-2.0	3.0-6.0	11800	12D	12-25	10-15
450	1.0-2.0	3.0-6.0	11800	12D	12-25	10-15
500	1.0-2.0	3.0-6.0	11800	12D	12-25	10-15
600	1.5-2.0	4.5-6.0	11800	15D	20-30	12-15
650	1.5-2.0	4.5-6.0	11800	15D	20-30	12-15
700	2.0-2.5	6.0-7.5	11800	15D	30-50	15-18
750	2.0-2.5	6.0-7.5	11800	15D	30-50	15-18
800	2.0-2.5	6.0-7.5	11800	15D	30-50	15-18
850	2.0-2.5	6.0-7.5	11800	15D	30-50	15-18
900	2.5-3.0	7.5-9.0	11800	15D	30-50	18-20
1000	2.5-3.0	7.5-9.0	11800	15D	50-75	18-20
1100	2.5-3.0	7.5-9.0	11800	15D	50-75	18-20
