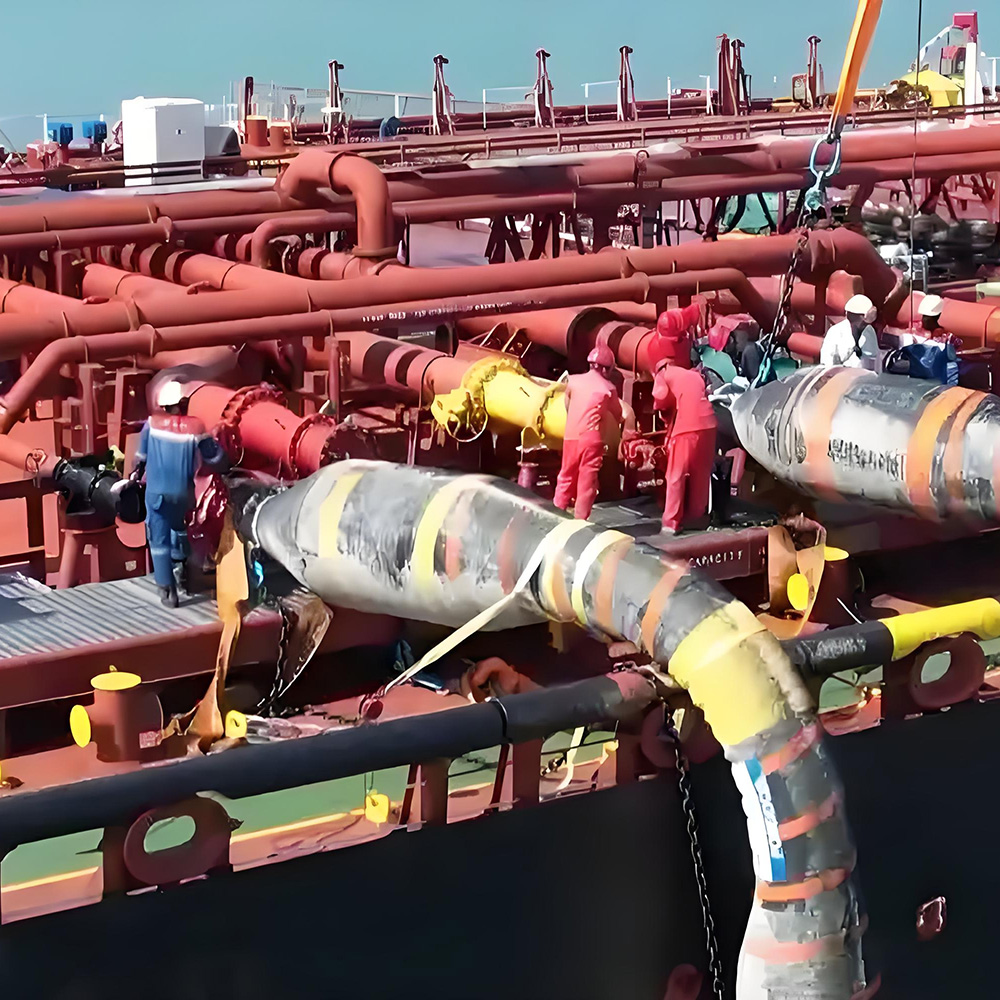

1. Used for connecting the tandem tanker end manifold and the tail pipe.

2. There are specific load-bearing requirements for the pipe lifting lugs, with each lug having a minimum safe working load: 12" = 100 KN, 16" = 150 KN, 20" = 200 KN.

3. Rated working pressure: 21 bar.

4. Minimum reserve buoyancy: 20% or as per customer requirements.

5. Electrical continuity: Continuous or non-continuous.

6. Leak detection system: When the primary structure is compromised and fails, the leaking fluid will trigger the leak detector probe to alert, allowing the customer to take timely action to replace the product, thereby avoiding direct leakage, which could result in economic loss and environmental pollution.

 Outer covering: PU or rubber.

1.用于串联油轮末端岐管和尾管

2.对油管吊耳的承受载荷有一定的要求，每个吊耳安全最小安全载荷：12"=100KN 16"=150KN 20"=200KN

3.额定工作压力：21bar

4.最小储存浮力：20%或根据顾客需要

5.电气连续性：连续或者不连续

6.渗漏探测系统：当第一骨架受到破坏失效后，渗漏液体会使渗漏探测器探头起到警示反应，客户可以及时采取措施选择更换产品，避免直接渗漏，造成经济损失和环境污染。

外覆层：PU或者橡胶
