Mud discharge dredging rubber hose-Dredging Hose-Sichuan Zhengshuo Machinery Equipment

Mud discharge dredging rubber hose

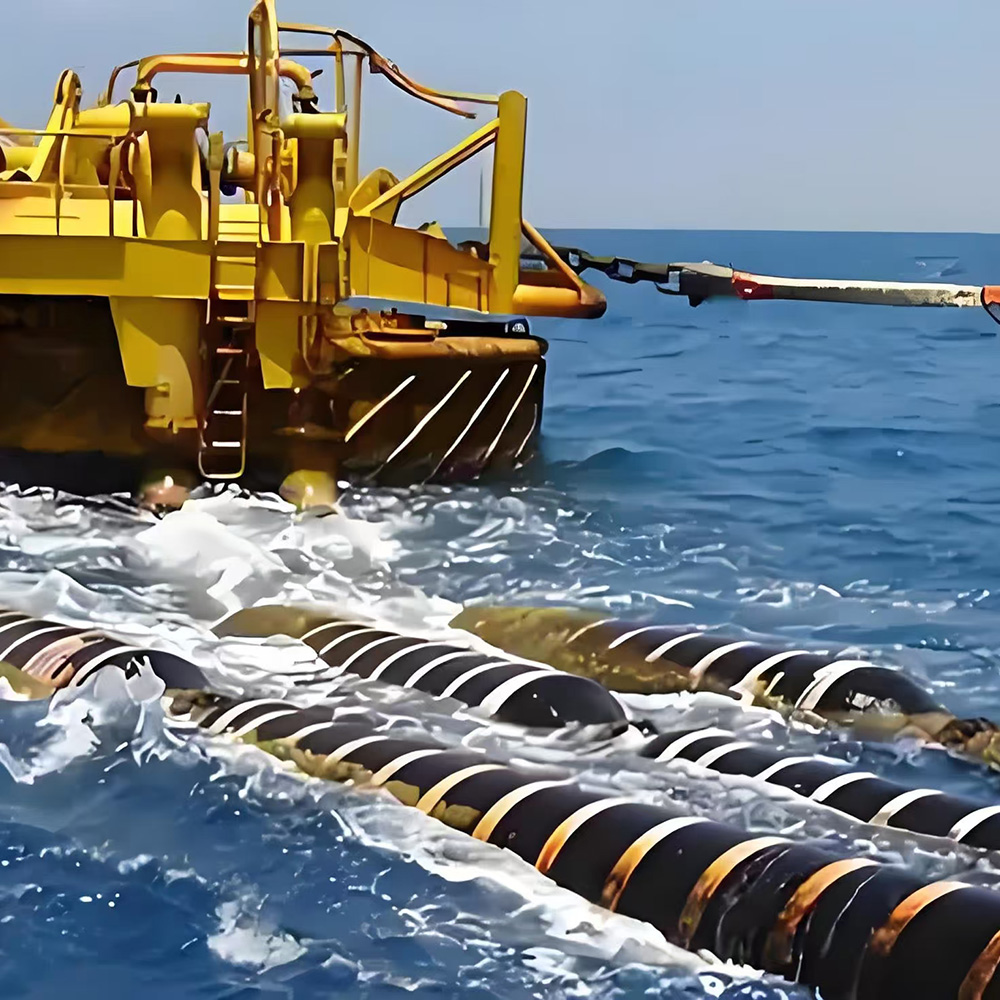

Designed for sediment dredging and silt removal in rivers, lakes, ports, and other water bodies.

It is used to connect with rigid pipelines and is an essential piece of equipment in current hydraulic engineering projects.

Overview

内径 Inside diameter (mm)	工作压力 Work Pressure (Mpa)	爆破压力 Burst pressure (Mpa)	长度 Lengths (m)	耐磨层厚度 Thickness of wear-resistant layer (mm)	外覆层厚度 Outer cladding thickness (mm)
300	0.5-1.5	1.5-4.5	1.5-2.0	12-15	5
400	0.5-1.5	1.5-4.5	1.5-2.0	12-15	5
450	0.5-1.5	1.5-4.5	1.5-2.0	12-15	5
500	1.0-2.0	3.0-6.0	1.5-2.0	15-20	5
550	1.0-2.0	3.0-6.0	1.5-2.0	15-20	5
600	1.5-2.5	4.5-7.5	1.5-2.0	15-20	5
650	1.5-2.5	4.5-7.5	1.5-2.0	15-20	5
700	1.5-2.5	4.5-7.5	1.5-2.0	20-25	5
750	1.5-2.5	4.5-7.5	1.5-2.0	20-25	5
800	1.5-2.5	4.5-7.5	1.5-2.0	25-50	5-8
900	2.0-3.0	6.0-9.0	2.0-3.0	25-50	5-8
1000	2.5-3.0	7.5-9.0	2.0-3.0	25-50	5-8
1100	2.5-3.0	7.5-9.0	2.0-3.0	25-50	5-8
